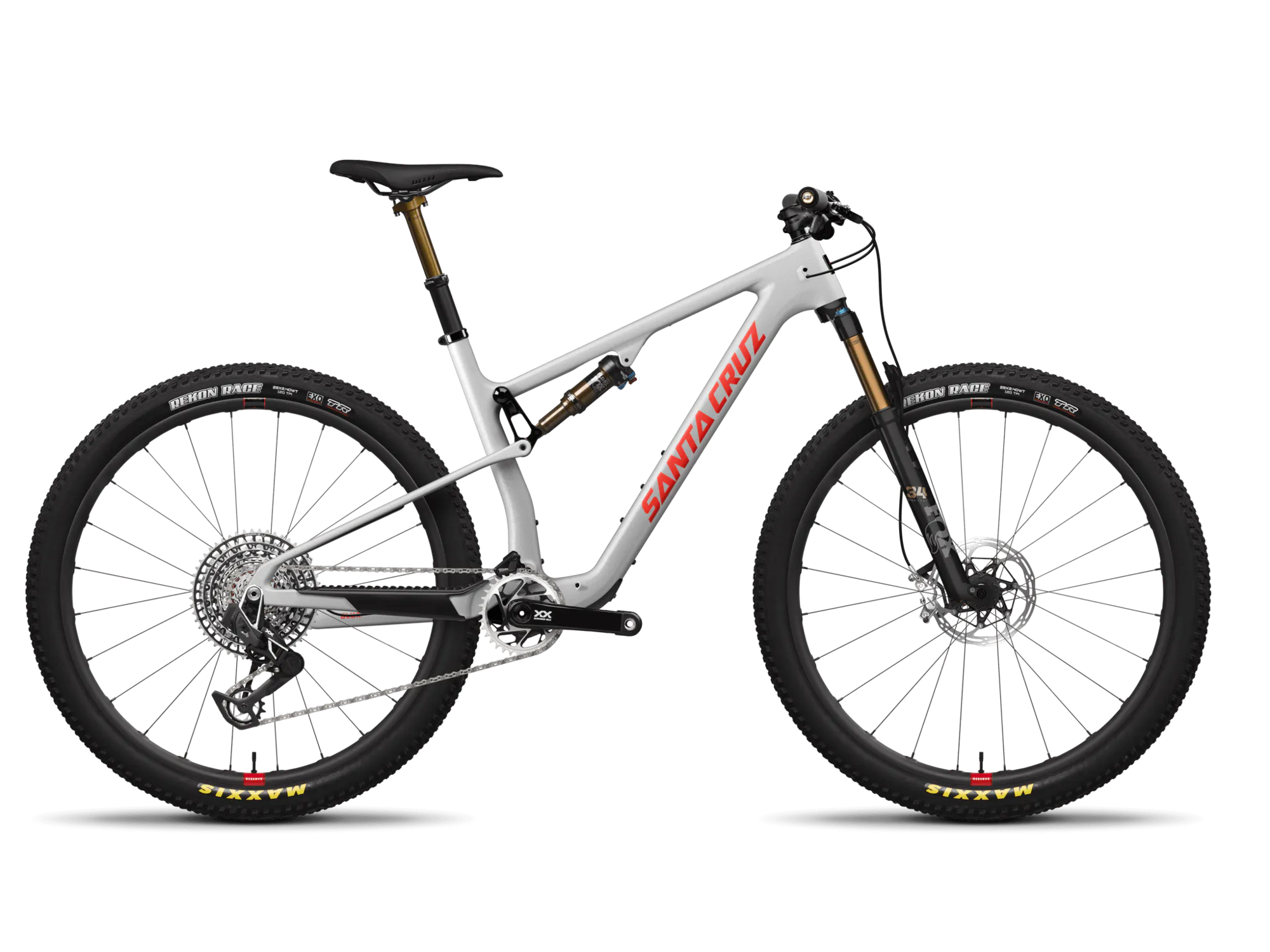

Santa Cruz Blur CC XX AXS TR RSV

Santa Cruz Blur CC XX AXS TR RSV
  • Color: Matte Silver
  • Color: Gloss Spring Green
$9,049.00
$11,299.00
Color:
Size: Medium
Wheel Size: 29-inch
Please select options Unavailable

Details

A Fair Advantage

Each weekend, at race venues the world over, there is one rider who gets hoisted upon the shoulders of the crowd and carried to the podium. Or at least leaves with a water bottle as their prize. And between each of those races, innumerable wannabes are putting in the hours on the rollers and in the gym all because they want to feel what it’s like to take the win. They know that to beat the pack every advantage needs to be acquired. That’s where the Blur fits in.

We tapped into everything we’ve learned from years of making the highest quality carbon full-suspension bikes so that we could put as little (weight) as possible into the Blur frame. The trim frame and super-efficient Superlight™ suspension will be the key to translating your input into competition beating performances.

But the Blur isn't just for the short track. Two water bottle mounts within the front triangle should keep chuggers happy. And the high-quality fit, finish, and carbon construction promises multi-day racers a worry-free existence—meaning there's no fiddly proprietary parts that could leave you stranded in a Cape Epic or Breck Epic campsite. The carbon frame, while being light, is made to go the distance and as always the legendary Santa Cruz lifetime warranty and Rider Support team has got your back.

The Blur isn’t guaranteed to make you a race winner but being the lightest, full-suspension carbon XC bike we’ve ever made (Approx 23lb as complete. Blur frame is 289g lighter than the previous model) it might be the difference between claiming first place...or just crossing the line.

Geometry

Geometry Chart:
SizeSmallMediumLargeX-Large
Reach (mm) 412.3 437.8 457.5 482.5
Stack (mm) 587.4 597 606.5 620.7
Head Tube Angle 67.1º 67.1º 67.1º 67.1º
Seat Tube Length (mm) 405 430 470 520
Front Center (mm) 695 723.7 747.4 778
BB Height (mm) 339.9 339.7 339.6 339.4
BB Drop (mm) 32.6 32.8 32.9 33.1
Wheelbase (mm) 1125.8 1157 1183.2 1216.3
Rear Center (mm) 430.8 433.3 435.8 438.3
Head Tube Length (mm) 90 100 110 125
Top Tube Length (mm) 568.4 597.3 621.4 651.7
Seat Tube Angle 75.1º 75º 74.9º 74.8º
Standover Height (mm) 743.5 746.4 745.4 750.1
Sizes:
Frame SizeRider Height
Small 5'1" - 5'5"
Medium 5'5" - 5'9"
Large 5'9" - 6'1"
X-Large 6'1" - 6'5"

Specs

Fork FOX 34SC Float Factory, 120mm
Hubs Front: DT Swiss 180 EXP, 15x110, Centerlock, 24h
Rear: DT Swiss 180 EXP, 12x148, XD, Centerlock, 36t, 24h
Rims Reserve 28|XC 29"
Stem SRAM Atmos 7k, 60mm
Chain SRAM XX SL Eagle T-Type, Flattop, 12spd
Tires Front: Maxxis Rekon Race 29"x2.4"WT, EXO
Rear: Maxxis Rekon Race 29"x2.4"WT, EXO
Brakes SRAM Level Ultimate Stealth 4-Piston
Rotors SRAM CLX, Centerlock, 180mm
Saddle WTB Silverado Medium, Ti
Headset Cane Creek AER IS Tapered Headset
Crankset SRAM XX SL Eagle DUB T-Type Crankset, 34t
Seatpost FOX Transfer SL Factory Dropper, 31.6
Shifters SRAM AXS Pod Ultimate Bridge
Handlebars Santa Cruz Carbon Flat Bar, 31.8x760, 7mm Rise
Rear Shock FOX Float Factory, 190x45
Tape/Grips ESI Chunky Grips
Bottom Bracket SRAM DUB BSA MTB 68/73mm, 4.5mm spacer
Rear Derailleur SRAM XX SL Eagle AXS T-Type, 12spd
Accessories & Extras SRAM eTap Powerpack 1 Battery
Cassette/Freewheel SRAM XX SL Eagle T-Type, 10-52t

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Matte Silver / Medium / 29-inch 192219336718 58-24245-191-3-805-141802
Gloss Spring Green / Medium / 29-inch 192219336725 58-24245-191-3-806-141802
