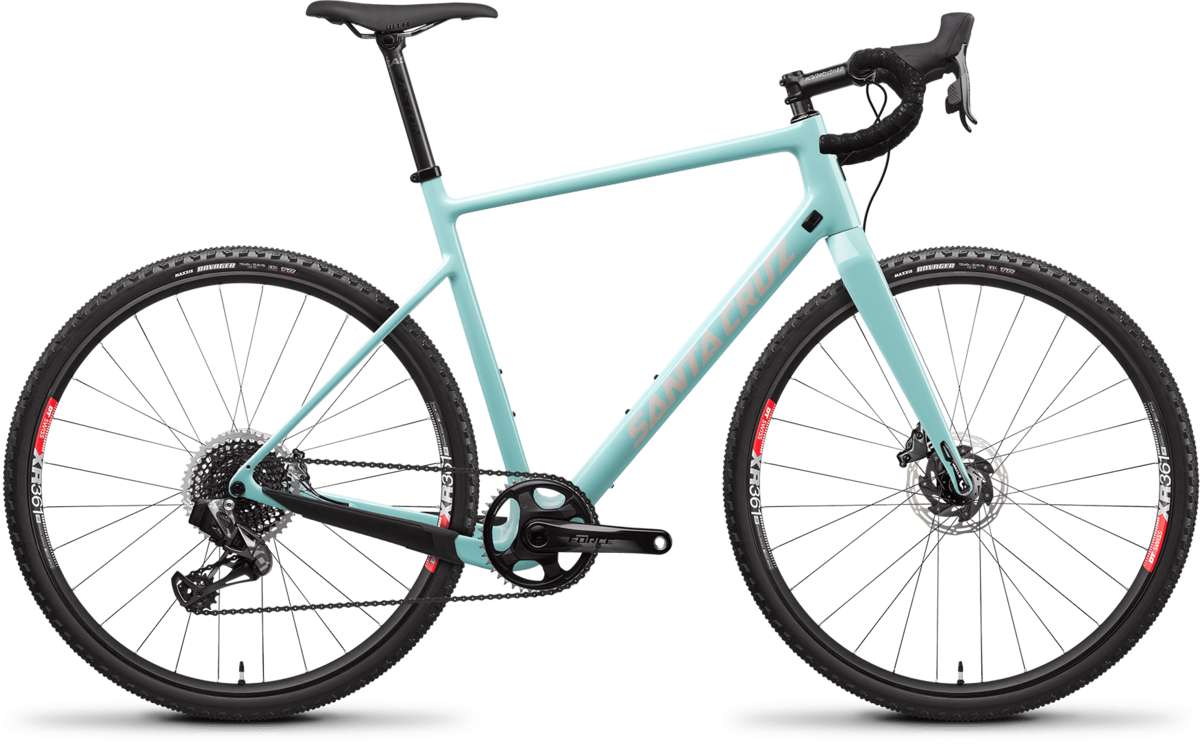

Santa Cruz Stigmata CC Force 1x 700c

Santa Cruz Stigmata CC Force 1x 700c
  • Color: Blue
  • Color: Green
$5,499.00
This product is not available for online purchase. Please call us at 781-447-7223 or visit our store.

Details

When the Stigmata was resurrected in 2015, we fused a number of MTB standards and design features to create our spin on the modern CX bike. Nowadays, the internally routed disc brakes, generous tire clearance, and thru-axles approach that made the Stigmata famous have become more of a norm for the gravel-curious and free-roading crowd, so we took a fresh look at which standards the riders of tomorrow wanted access to today.

Threaded bottom brackets remain a perennial favorite across our entire line. The Stigmata also has your ass covered with neat, hidden fender mounts, and three water bottle mounts that highlight the Stigmata's ever-widening scope of purpose.

Deeper adventures, bigger tires perhaps? The frame now clears up to a 45mm 700c or a 2.1" 650B tire. Marry the latter to our Force/X01 AXS mashup kit, and you've got yourself the kind of drop-bar singletrack rallycat we can all get on board with.

And, when it comes to good old-fashioned off-road etiquette, the Stigmata's had some coaching at the Highball school of stiffness, handling, and offroad feel. The carbon layup and frame design produce a ride so law-abiding you'd think HR had sent it on a compliance training course.

Geometry plays a big part here too, so we've made tweaks to improve handling for smaller riders and reduce toe overlap. The reworking of the 52/54cm frames means the Stigmata now comfortably suits riders from 5'3" and up. Meanwhile, different fork offsets—50mm for the 52-54cm sizes, and 45mm for the 56-61cm sizes—help ensure your little piggies don't go to market on the front wheel.

Topped off with tidy details like 12mm front axle and flat-mount brakes, the Stigmata is designed to let you decide whatever the heck you want this category to be.

- Frame: Carbon CC Cyclocross
- 700c x 45mm tire clearance
- Rear Derailleur: SRAM X01 Eagle AXS, 12spd
- Brakes: SRAM Force

Electronic drivetrain systems deliver excellent shifting, easy set up, and solid battery life. Here are the highlights of today’s electronic shifting systems:

Shifting Performance
Electronic shifting systems use powerful servomotors to rapidly shift the chain. Because microprocessors and sensors constantly monitor every aspect of the system, they shift with precisely and without chain rub.

Customization
Many major systems have customizable shifting. Some have the ability to add remote shifters for common riding positions, and some even allow you to change the functions of the shifting buttons.

Dependability
Electronic groupsets are responsive and consistent. There are no cables to stretch and wear out, so you get a flawless shift every time. The added bonus is you’ll never have to replace a derailleur cable ever again.

Specs

Frame Carbon CC Cyclocross
Headset Cane Creek 40 IS Integrated
Rims/Wheels DT Swiss XR 361 Asym 29"
Hubs Front: DT Swiss 350, 12x100, Center Lock, 28h
Rear: DT 350, 12x142, XDr, Center Lock, 28h
Spokes Front: DT Swiss 350, 12x100, Center Lock, 28h
Rear: DT 350, 12x142, XDr, Center Lock, 28h
Tires Maxxis Ravager 700x40c, EXO
Crankset SRAM Force 1
Chainrings 42T
Bottom Bracket SRAM DUB
Chain SRAM XX1 Eagle, 12spd
Rear Derailleur SRAM X01 Eagle AXS, 12spd
Cassette/Rear Cogs SRAM XG1295 Eagle, 12spd, 10-50T
Shifters SRAM Force eTap AXS, 12spd
Handlebars Easton EA70 AX
Tape/Grips Velo Bar Tape
Stem Easton EA90
Brakes SRAM Force w/SRAM CLX R Center Lock 160mm
Saddle WTB Silverado Team
Seat Post Easton EC70, Zero Offset

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Blue / 52cm 192219168128 58-21210-138-2-693-000001
Blue / 54cm 192219168166 58-21210-138-3-693-000001
Blue / 56cm 192219168203 58-21210-138-4-693-000001
Blue / 58cm 192219168241 58-21210-138-5-693-000001
Blue / 60cm 192219168289 58-21210-138-6-693-000001
Green / 52cm 192219168142 58-21210-138-2-694-000001
Green / 54cm 192219168180 58-21210-138-3-694-000001
Green / 56cm 192219168227 58-21210-138-4-694-000001
Green / 58cm 192219168265 58-21210-138-5-694-000001
Green / 60cm 192219168302 58-21210-138-6-694-000001
