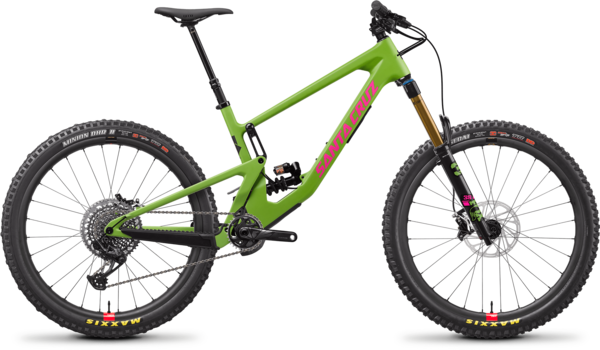

Santa Cruz Nomad 5 CC X01 Coil RSV

Santa Cruz Nomad 5 CC X01 Coil RSV
$5,799.00
$9,599.00
Color: Adder Green
Size: Large
Please select options Unavailable

Details

Big mountain riding is a nomadic existence. Meeting friends in far-flung car parks. Pinpointing trails you're not sure are even rideable. Sending the ones you know are. Shiny new bling gets battered, shattered, and bruised. That's life. That's how it should be. That's why the Nomad exists.

Probably the most abused bike in our line up, every Nomad has a story to tell. But each Nomad we've made keeps coming back for more. It's not Stockholm Syndrome, it's called sealed bearings in all pivots, lower link grease port, shuttle guards, and free bearing replacements. Why scrap a frame when a simple bearing service can make one last a lifetime? That's our stance on sustainability at least, and it's why our carbon fiber doesn't just mean lighter, it means tough as hell, lifetime warranty, and crash replacement support.

There's no time for puzzling when on a road trip either. That's why we chose 27.5 wheels as the go-to for the widest variety of riding styles and rider sizes. When peeling your bike out of the van at a new spot, your only question should be "Is this a full face or a half lid kinda ride?" The 64-degree head angle and 77.5-degree seat angle puts you in the sweet spot when winching up to the top of a big drop in. Meanwhile, proportional chainstay lengths mean handling is never compromised, regardless of frame size.

And when we say big travel, we're not talking about your Transit's odometer. We're talking 170mm of 38mm diameter fork and 170mm of VPP rear suspension compatible with both coil and air shocks. The details are completed by a neat mud flap to protect the rear shock plus tidy cable routing within the frame and swingarm, and rubberized DT protectors to shrug off strikes.

So van-lifers unite. The Nomad is the kind of bike you need never worry about all summer long. Sorry we can't say the same for the locked public washrooms and parking tickets.

Specs

Frame Carbon CC 27.5" 170mm Travel VPP
Fork FOX 38 Float Factory, 170mm, 27.5"
Rear Shock Fox DH X2 Factory Coil 2-Position lever
Rims Reserve 30 27.5" Carbon
Hubs Front: DT Swiss 350, 15x110, 28h
Rear: DT Swiss 350, 12x148, XD, 28h
Spokes Sapim D-Light
Tires Front: Maxxis Assegai 27.5 x 2.5", 3C, MaxxGRIP Double Down, TR
Rear: Maxxis Minion DHR II 27.5 x 2.4", 3C, MaxxGRIP, Double Down, TR
Bottom Bracket SRAM DUB 68/73mm
Crankset SRAM X1 Eagle Carbon 148 DUB, 32t
Shifters SRAM X01 Eagle, 12spd
Rear Derailleur SRAM X01 Eagle, 12spd
Cassette/Freewheel SRAM XG1295 Eagle, 12spd, 10-52t
Chain SRAM X01 Eagle, 12spd
Brakes SRAM Code RSC
Rotors Avid Centerline 200mm
Handlebars Santa Cruz Bicycles Carbon Riser
Tape/Grips Santa Cruz Palmdale
Stem Burgtec Enduro MK3
Headset Cane Creek 40 IS Integrated
Seatpost RockShox Reverb Stealth
Saddle WTB Silverado Team
Pedals Sold separately
Accessories & Extras OneUp Bash chainguide

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Adder Green / Large 192219155265 58-21222-113-4-685-363502 60584
