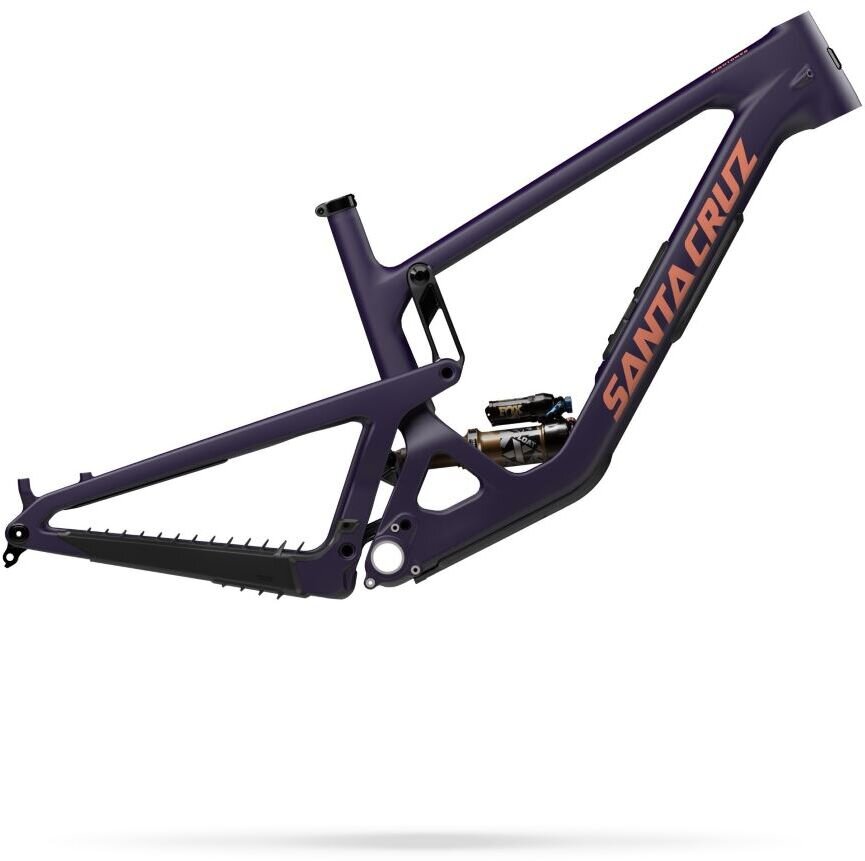

Santa Cruz Hightower CC Frameset
Details
Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true ATB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
| Small | Medium | Large | X-Large | XX-Large | |
|---|---|---|---|---|---|
| Reach | hi/lo | 430/427 | 455/452 | 475/472 | 495/492 | 520/517 |
| Stack | hi/lo | 611/613 | 625/627 | 634/636 | 652/654 | 665/668 |
| Head Tube Angle | hi/lo | 64.8°/64.5° | 64.8°/64.5° | 64.8°/64.5° | 64.8°/64.5° | 64.8°/64.5° |
| Seat Tube Length | 380 | 405 | 430 | 460 | 500 |
| Front Center | hi/lo | 752/752 | 783/783 | 807/807 | 836/836 | 867/867 |
| BB Height | hi/lo | 342/339 | 342/338 | 342/338 | 342/338 | 342/338 |
| BB Drop | hi/lo | 31/34 | 31/34 | 31/34 | 31/34 | 31/34 |
| Wheelbase | hi/lo | 1183/1183 | 1217/1218 | 1244/1245 | 1276/1276 | 1310/1311 |
| Rear Center | hi/lo | 431/432 | 434/435 | 437/438 | 440/441 | 443/444 |
| Head Tube Length | 100 | 115 | 125 | 145 | 160 |
| Top Tube Length | hi/lo | 571/572 | 599/600 | 626/627 | 647/648 | 674/675 |
| Seat Tube Angle | hi/lo | 77°/76.7° | 77°/76.7° | 76.7°/76.4° | 76.9°/76.6° | 76.9°/76.7° |
| Standover Height | hi/lo | 706/701 | 708/703 | 711/706 | 714/709 | 719/714 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| Small | 155 - 165 | 5'1" - 5'5" |
| Medium | 165 - 175 | 5'5" - 5'9" |
| Large | 175 - 185 | 5'9" - 6'1" |
| X-Large | 185 - 193 | 6'1" - 6'4" |
| XX-Large | 193 - 201 | 6'4" - 6'7" |
Specs
| Frame | Carbon C 29” 150mm Travel VPP™ |
|---|---|
| Rear Shock | FOX Float X Factory, 230x57.5 |
* Subject to change without notice.
