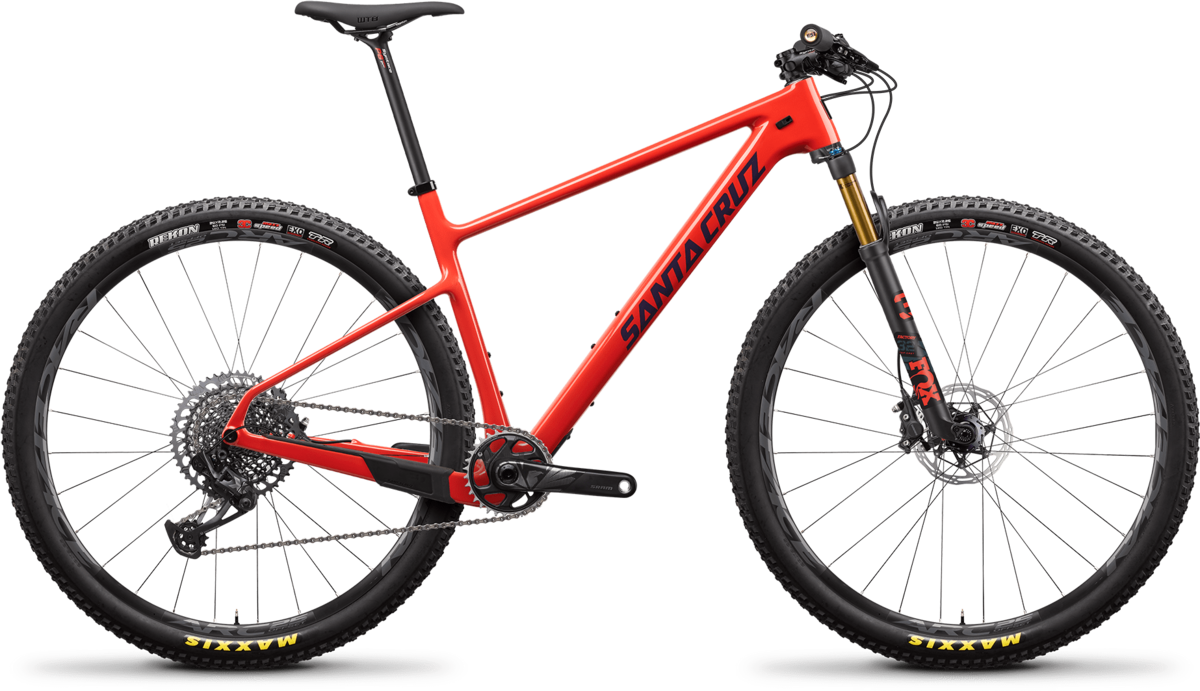

Santa Cruz Highball CC X01
Details
The Highball is our flagship carbon hardtail race thoroughbred and a dark horse in XC versatility.
More capable than a pure endurance bike, more composed than most XC race-rigs, the Highball has evolved to be easier to ride harder for longer. We fine-tuned the carbon layup process and the low-angle, bridgeless seatstays join the seat tube below the top tube junction in order to curb trail chatter.
Built around a 27.2mm diameter seat post, the whole package combines to take the "hard" out of hardtail riding. It has the mindset of a race bike but it’s prepared for more. With capacity for three bottle cages, the ever-reliable threaded BB, and, of course, the lifetime warranty that comes standard with all Santa Cruz bikes, it’s the kind of bike that’ll go far.
- Carbon CC frame
- FOX SC 32 Float Factory 100mm fork w/remote
- SRAM X01 Eagle drivetrain
- RaceFace ARC Offset 25 rims/DT 350 hubs
- SRAM Level TLM brakes
- Carbon bars and seatpost
Specs
| Frame | Carbon CC 29" Hardtail |
|---|---|
| Fork | FOX SC 32 Float Factory, 100mm, 29", w/Fox Remote Lever, 2-position |
| Headset | Cane Creek 40 IS Integrated |
| Axles |
Front: 110 x 15 thru-axle Rear: 148 x 12mm thru-axle |
| Rims/Wheels | RaceFace ARC Offset 25 29" |
| Hubs | DT Swiss 350, Center Lock, 28h, XD |
| Spokes | Sapim Race |
| Tires | Maxxis Rekon 29 x 2.25", 3C, EXO, TR |
| Crankset | SRAM X1 Eagle Carbon 148 DUB |
| Chainrings | 34T |
| Bottom Bracket | SRAM DUB 68/73mm |
| Chain | SRAM X01 Eagle, 12spd |
| Rear Derailleur | SRAM X01 Eagle, 12spd |
| Cassette/Rear Cogs | SRAM XG1295 Eagle, 12spd, 10-52t |
| Shifters | SRAM X01 Eagle, 12spd |
| Handlebars | Santa Cruz Bicycles Carbon Flat |
| Tape/Grips | ESI Chunky Grips |
| Stem | Syntace LiteForce |
| Brakes | SRAM Level TLM w/SRAM CLX Center Lock 160mm rotors |
| Saddle | WTB Silverado Team |
| Seat Post | Syntace P6 Carbon HiFlex |
* Subject to change without notice.
