Juliana Roubion CC Frame

Juliana Roubion CC Frame
Please select options
Sorry, this item is currently not available. Please check back soon - or call us at 781-447-7223.

Details

Ready to rally the World.

A 1:25000 scale map, a weather forecast, and the Roubion. Three things you shouldn't hit the high mountains without. And, while we can't guarantee you won't get lost or soaked, we're pretty sure there's no better bike to tackle ancient alpine terrain.

Whether blind racing or just blindly enjoying the trails as they come, the Roubion's MX wheel combo feels like the best mix since Aperol met spritz. A 29-inch front wheel serves up high-speed stability and high-rolling confidence. Meanwhile the 27.5-inch rear makes for an intuitive and highly maneuverable rear end that loves to get sideways around the most ragged of switchbacks.

This bike is rapid, so when it comes to stopping power and control, we've mixed things up here, also. A 200mm front and 180mm rear brake rotor pairing ensures you shouldn't overcook the corners no matter how hot you're coming in. The Roubion's chainstay lengths are all specifically sized for the XS, S, and M frames too, meaning handling remains consistent across the range. And, like all Julianas, each shock is tuned to work better for slightly lighter riders than equivalent Santa Cruz models.

High Setting
bike frame with labeled dimensions

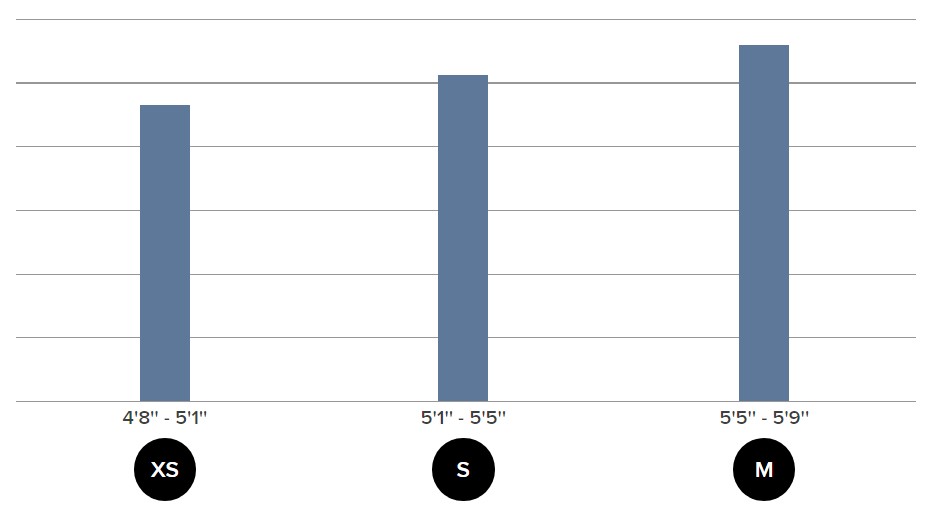

Bike Sizes:
XSSM
A. Reach 405mm 430mm 455mm
B. Stack 594mm 617mm 626mm
C. Standover 701mm 709mm 731mm
D. Effective Top Tube 536mm 570mm 599mm
E. Head Tube Angle 64.7° 64.7° 64.7°
F. Head Tube Length 110mm 100mm 110mm
G. Seat Tube Angle 77.6° 77.2° 77.1°
H. Seat Tube Length 370mm 380mm 405mm
I. Bottom Bracket Height 344mm 344mm 344mm
J. Bottom Bracket Drop 10mm 29/10mm 29/10mm
M. Wheelbase 1149mm 1188mm 1221mm
N. Front to Center 722mm 757mm 786mm
O. Chainstay Length 427mm 431mm 435mm

Low Setting
bike frame with labeled dimensions
Bike Sizes:
XSSM
A. Reach 402mm 427mm 452mm
B. Stack 595mm 619mm 628mm
C. Standover 698mm 706mm 727mm
D. Effective Top Tube 542mm 575mm 604mm
E. Head Tube Angle 64.5° 64.5° 64.5°
F. Head Tube Length 110mm 100mm 110mm
G. Seat Tube Angle 76.9° 76.7° 76.6°
H. Seat Tube Length 370mm 380mm 405mm
I. Bottom Bracket Height 341mm 341mm 341mm
J. Bottom Bracket Drop 13mm 32/13mm 32/13mm
M. Wheelbase 1154mm 1159mm 1222mm
N. Front to Center 722mm 757mm 786mm
O. Chainstay Length 432mm 432mm 436mm

Specs

Frame Roubion CC
Rear Shock RockShox Super Deluxe Ultimate
Wheels Front: 29-inch
Rear: 27.5-inch
Axles 12x148mm
Tires 2.6-inch max
Bottom Bracket 73mm threaded
Chainrings 36t max
Front Derailleur No compatibility
Brakes 180 PM
Headset Integrated (IS41/52)
Seatpost 31.6mm

* Subject to change without notice.
