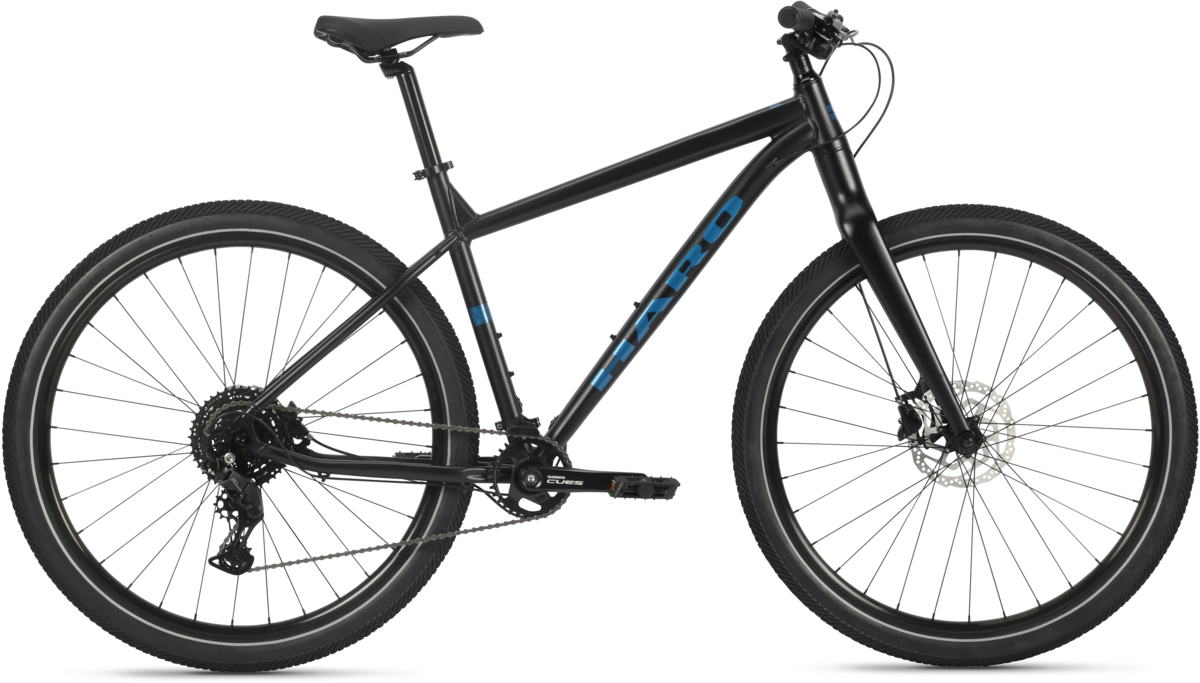

Haro Beasley One 29
$799.99
$899.99
Details
Rolling steady. The all-new Beasley One 29" is a clean, comfortable machine, ready to take on the day. Built on a lightweight aluminum frame and fork, with a 1 X 9 Shimano Cues drive-train for simple, efficient shifting. Big and beefy Kenda Kwick 29 X 2.4" tires take on the dirt, the road and everything in your path, with mechanical disc brakes front and rear to slow it down when you get there.
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 406mm | 457mm | 508mm | 559mm |
| Top Tube (Effective) | 595mm | 610mm | 635mm | 645mm |
| Head Tube Angle | 69° | 69° | 69° | 69° |
| Seat Tube Angle | 72.5° | 72.5° | 72.5° | 72.5° |
| Chainstay Length | 450mm | 450mm | 450mm | 450mm |
| BB Drop | 64mm | 64mm | 64mm | 64mm |
| Wheelbase | 1105.98mm | 1136mm | 1146.64mm | 1157.3mm |
| Head Tube Length | 100mm | 100mm | 110mm | 120mm |
| Standover | 721mm | 740mm | 773.7mm | 799mm |
| Stack Height | ||||
| Reach | 394mm | 425mm | 435mm | |
| Axle to Crown | 515mm | 515mm | 515mm | 515mm |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Stem Length | ||||
| Bar Width | ||||
| Crank Length | ||||
| Wheel Size |
Specs
| Frame | Haro Beasley 6061-T6 aluminum with internal cable routing (including for dropper post) and tapered steerer tube |
|---|---|
| Fork | Rigid 6061-T6 aluminum, 1.5" tapered steerer tube, disc brake mount |
| Wheels | Double Wall I25 |
| Hubs | Alloy quick-release |
| Tires | Kenda Kwick Nine 29 x 2.4" with reflective sidewall (front & rear) |
| Bottom Bracket | Sealed cartridge 73mm |
| Crankset | Shimano Cues U4000 3-piece alloy crank with 32T chainring |
| Shifters | Shimano Cues 9-speed Rapid-fire with optical window |
| Rear Derailleur | Shimano Cues 9-speed |
| Cassette/Freewheel | Shimano Cues 9-speed 11-41T |
| Chain | Shimano CN-LG500 |
| Brakes | Shimano MT-200 2-piston hydraulic disc brakes with 160mm rotors |
| Brake Levers | Shimano MT-200 |
| Handlebars | 780mm wide, 15mm rise, 9° back sweep, 5° up sweep |
| Tape/Grips | DDK TPR 130mm |
| Stem | Alloy 3D forged 60mm reach |
| Headset | Neco 1-1/8"-1.5" tapered, threadless |
| Seatpost | Alloy micro-adjust |
| Saddle | DDK MTB |
| Pedals | FPD nylon platform 9/16" |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black/Blue Chameleon / Small / 29-inch | 691840350006 | 35000 | HAR31671021E |
| Black/Blue Chameleon / Medium / 29-inch | 691840350013 | 35001 | HAR31270868E |
| Black/Blue Chameleon / Large / 29-inch | 691840350020 | 35002 | HAR31412040E |
| Black/Blue Chameleon / X-Large / 29-inch | 691840350037 | 35003 | HAR32322344E |
| Khaki/Orange / Small / 29-inch | 691840350129 | 35012 | HAR39476276E |
| Khaki/Orange / Medium / 29-inch | 691840350136 | 35013 | HAR39778404E |
| Khaki/Orange / Large / 29-inch | 691840350143 | 35014 | HAR39977966E |
| Khaki/Orange / X-Large / 29-inch | 691840350150 | 35015 | HAR4057531E |
